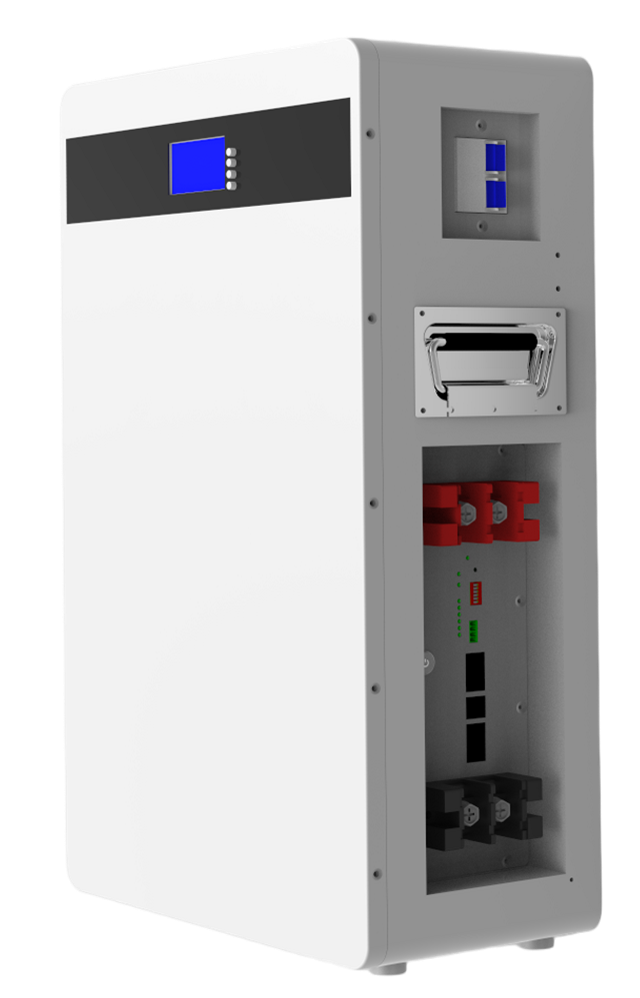

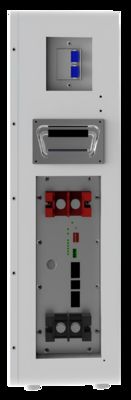

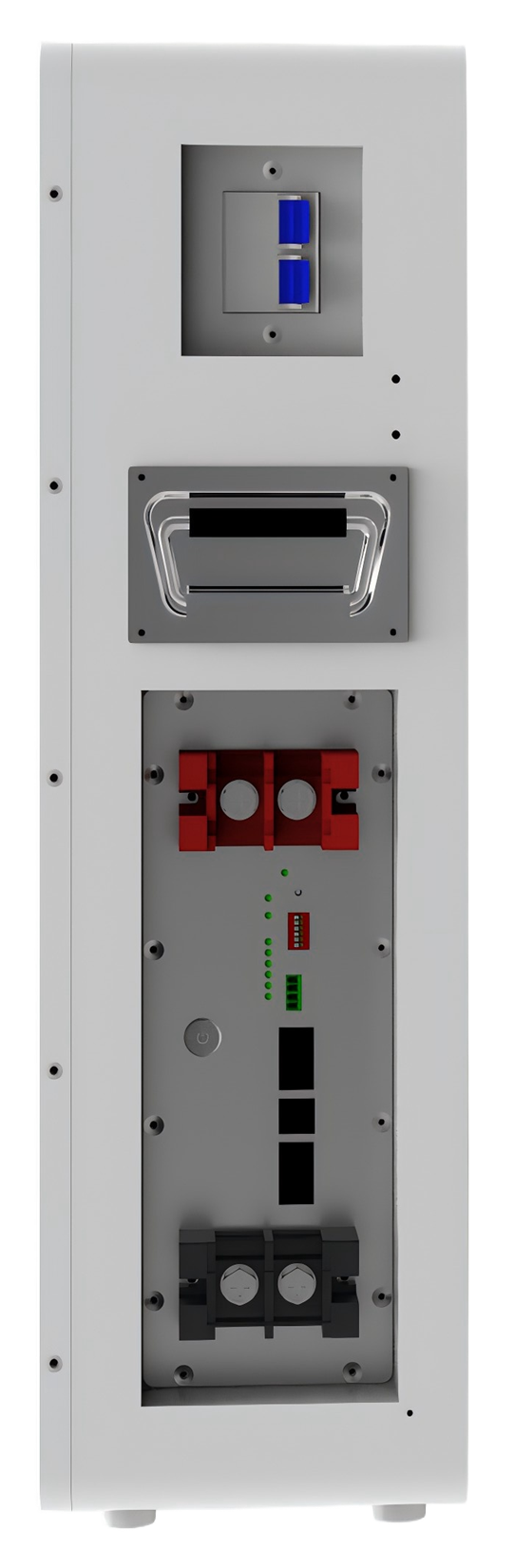

Home Energy Storage System LW-10K Wall-Mounted LiFePO₄ Battery
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | Gtech |
| Certificación | UN38.3/CE/MSDS |
| Número de modelo | LW-10K |
| Cantidad de orden mínima | 1 PCS |
| Precio | negotiable |
| Detalles de empaquetado | Embalaje de caja de madera |
| Tiempo de entrega | 20 días de trabajo |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 10000 pcs/mes |
Póngase en contacto conmigo para muestras y cupones gratis.
Whatsapp:0086 18588475571
- ¿ Qué es eso?: 0086 18588475571
skype: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Vida útil | 10 años | Color de la batería | Blanco |
|---|---|---|---|
| Protección contra la entrada | IP65 | Humedad de almacenamiento | Derecho del 65±20% |
| Tipo del mantenimiento | gratis | Rango de temperatura de funcionamiento | -20 ° C a 60 ° C |
| Tipo de celda de batería | Lifepo4 | Garantía | 5 años |
| Resaltar | wall-mounted LiFePO4 battery,home energy storage system,10KWh LiFePO4 battery pack |
||
Descripción de producto
Home Energy Storage System — LW-10K Wall-Mounted LiFePO₄ Battery
Product Overview
The LW-10K is a high-performance wall-mounted lithium iron phosphate (LiFePO₄) battery designed for residential energy storage applications.
With a usable capacity of 10.24 kWh, it provides reliable and efficient power for home solar storage systems, peak shaving, and backup power.
Featuring advanced safety protection, long cycle life, and intelligent communication, the LW-10K delivers clean, stable, and smart energy for modern households.
Technical Specifications
| Item | Specification |
|---|---|
| Battery Type | LiFePO₄ |
| Rated Voltage & Capacity | 51.2 V / 200 Ah |
| Rated Energy | 10.24 kWh |
| Operating Voltage Range | 40 V – 58.4 V |
| Charging Voltage | 58.4 V |
| Max Continuous Charge/Discharge Current | 200 A |
| Peak Discharge Current | 250 A (1 s, configurable) |
| Cycle Life | > 4500 cycles @ 80 % DOD |
| Communication Interface | RS485 / CAN (standard) |
| Operating Temperature | -20 °C ~ +60 °C |
| Humidity | 0 – 95 % (no condensation) |
| Noise Level | < 40 dB (@ 1 m) |
| Dimensions (W×H×D) | 1000 × 800 × 200 mm |
| Net Weight | 88.2 kg |
| Certifications | UN38.3, MSDS, CE |
| Warranty | 5 Years |
Key Features
-
High Safety – Uses LiFePO₄ chemistry with excellent thermal stability, non-explosive and fire-resistant.
-
Long Service Life – Over 4500 cycles, supporting 10+ years of daily use.
-
High Power Output – Continuous 200 A discharge and 250 A peak for high-load applications.
-
Intelligent BMS – Real-time monitoring and full protection (overcharge, over-discharge, over-current, short-circuit, over-temperature).
-
Flexible Communication – Supports RS485 and CAN for seamless inverter integration.
-
Modular & Scalable – Easily expandable for higher energy capacity.
-
Compact Wall-Mount Design – Space-saving, modern appearance, ideal for residential and small commercial use.
-
Ultra-Quiet Operation – Noise < 40 dB, suitable for indoor installation.
Typical Applications
-
Residential Solar Energy Storage – Store daytime solar power for night-time use, maximizing self-consumption.
-
Backup Power System – Reliable power supply during grid outages.
-
Smart Home Energy Management – Improve energy independence and reliability.
-
Small Commercial or Office Storage – Peak-load shifting and electricity cost reduction.
Our Services
-
Turn-key Energy Storage Solutions – From system design and component selection to on-site installation and commissioning.
-
Professional Technical Support – Communication protocol customization, inverter compatibility testing, and remote monitoring setup.
-
After-Sales Service – 5-year warranty and lifetime technical support.
-
OEM / ODM Customization – Flexible options for capacity, design, communication interface, and branding.
-
Fast Delivery & Global Logistics – Standardized products in stock and worldwide shipping available.
The LW-10K wall-mounted LiFePO₄ battery combines safety, durability, high efficiency, and intelligent control to provide a reliable energy storage solution for homes and small businesses.
Whether for solar integration, backup power, or off-grid applications, LW-10K ensures continuous, eco-friendly, and cost-effective energy independence.
